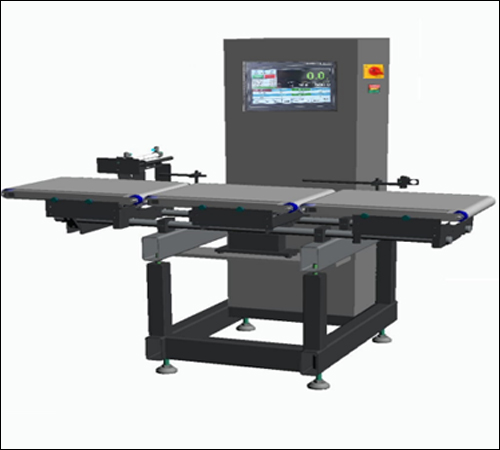

Checkweigher



Checkweigher


Checkweigher

• Four levels of security
• Real time statistical information
• Product report
• Statistical report
• Parameter report
• User report
• Store up to 1,000 different products
• Five zone classification Control Panel
• Power disconnect with lock-out-tag-out
• E-stop
• VFD (variable frequency drive)
• Motor overloads Hardware
• Square tube construction (SST or Aluminum)
• 32 inch height from top of belt with +/- 2.5 inch of adjustment
• Modular belting
• Drive on right hand side of belt (looking down belt flow)
• Control panel mounted on left hand side of belt (looking down belt flow)

Specifications :
Construction : Stainless steel food grade, stainless steel non-food grade or aluminum non-food grade
Configurations : Checkweigher or conveyor scale
Speed : Up to 240 ft per minute
Container Types : Boxes, bags, pouches, trays, tubs, cups, blister packs, display packs, clam shells
Container Weights : Up to 200, lb, Resolution down to 0.01, lb/5 grams, or better (dependent on scale capacity)
Power Configuration : 230/460 VAC 3 phase, 60Hz
Warranty : Two-year limited warranty (excludes power train and wear parts)
Approvals : NTEP : Food grade stainless steel, Non-food grade aluminum, Non-food grade SST; 60 ppm at 2000 divisions,
Non-NTEP : Food grade stainless steel, Non-food grade aluminum
Non-NTEP : Non-food grade SST; 80 ppm at 4000 divisions
Optional : UL 508

Optional Features & Accessories
• Divert Methods Pneumatic pusher Air blast Drop conveyor Paddle
• Secondary diverter in series or parallel
• Audible alarm (non-wash down only)
• Draft shields
• Pull cord E-stops
• Conveyor guide rails (round or flat)
• Custom programing available
• Food grade SST angle construction, NEMA 4X IP66 wash down systems
• Bar code scanner
• Labeling system
• UL 508
• Metal detection
• NTEP Legal for Trade (up to 2000 divisions and 60 ppm))
• Filling machine feedback
• Pacer belt in-feed

Checkweigher Packages
• NTEP and Non-NTEP certified packages available in stainless steel and aluminum for food and non-food grade applications.
• Checkweigher Packages Include
• Common framework for mounting conveyor scale on same frame as in-feed conveyor and indicator
• Basic control enclosure to interconnect wiring from photo eyes, divert solenoid and conveyor on / off / E-stop
