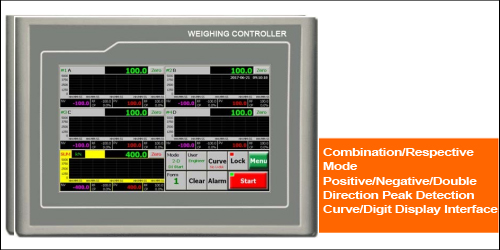

TFT-Touch Force Measuring Controller [1/4-Channel]

GS TK91(TFT1/4)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/130,000 • High sampling frequency 320Hz • Save detection results for query automatically • Target Batch Count Control • Definable DI/DO/AO/COM[Communication Port] • Recipe Number: 100
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC5V/250mA. 18 Normally Open Transistor Outputs [DO] : DC24V, 500mA 4 Analog Signal Outputs [AO] : 0~10V, Max.50mA. COM&COM1 : RS232; COM2: RS485 USB1 : Connect mouse, software download, data backup LAN : Optional Ethernet Outline Size [W×H×D] : •7”:226.5 × 163 × 36 mm •10.2”:274 × 193 × 40 mm	Panel Cut-out Size [W×H] : •7”:215 × 152 mm •10.2”:261 × 180 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Force Measuring Accuracy : 0.2%~0.5% • 16 Loadcells[350Ω] connectable • 7 Normally Open Switch Inputs [DI]

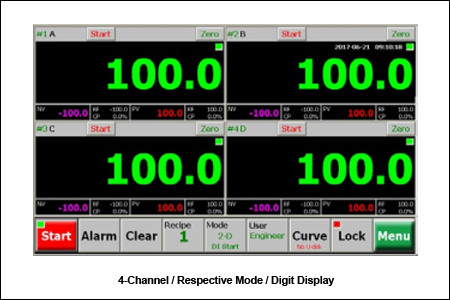

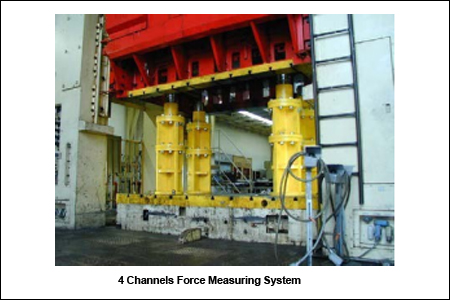

Main Applications : • M10[SF]: Single Channel Force Measuring System • M10[FF]: 1-4 Channels Force Measuring System • M10[FF]: Combination/Respective Detection Modes • Positive/Negative/Double Direction Peak Detection Modes • Threshold / DI Switch Start&Stop Modes • Real-time Curve/Digit Display Interfaces

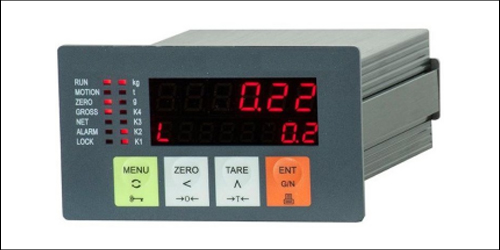

Force Measuring Controller

GS TK92(LFM)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 6+8 Red LED digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 3200Hz • Auto Zero Tracking • Load Calibration, Data Calibration & Segmenting Correction • Definable AO/COM[Communication Port] • Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response
Technical Specifications : Power Supply : DC24V±20%, Max. 5W Loadcell Excitation Voltage/Current : DC9V/120mA. 5 Normally Open Transistor Outputs [DO] : DC24V, 500mA 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : RS232 COM2 : RS485 Outline Size [W×H×D] : 110 × 62 × 150 mm. Operating Temperature : -25℃～+45℃ Weighing Signal Input Range : 0~22.5mV	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.03% Static Weighing Accuracy : 0.2%~0.5% • 4 Loadcells[350Ω] connectable • 6 Normally Open Switch Inputs [DI]

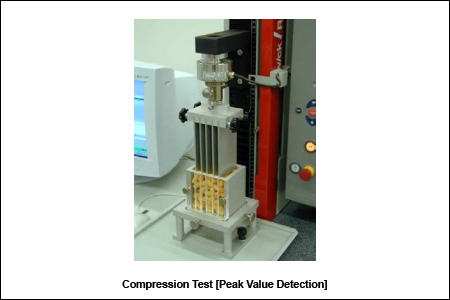

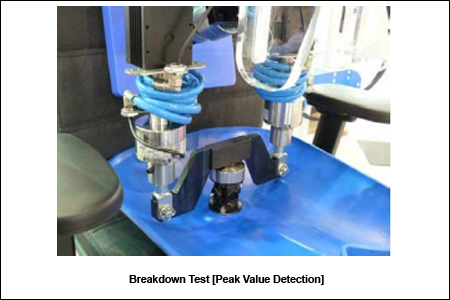

Main Applications : • Positive&Negative Direction Real-time Force Value Display • Peak Value Detection / Display Holding • DO Alarm Output • Force Signal AO/Digit Transmission • Positive/Negative/Double Direction Modes • Threshold / DI Pulse / DI Switch / DI Jump Start&Stop Modes

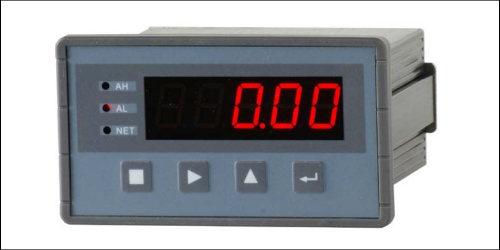

Mini Weighing / Force Measuring Controller

GS TK93(MW/FM)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 5 Red LED digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 1280Hz • Auto Zero Tracking • Load Calibration, Data Calibration & Segmenting Correction • Definable AO/COM[Communication Port] • Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response

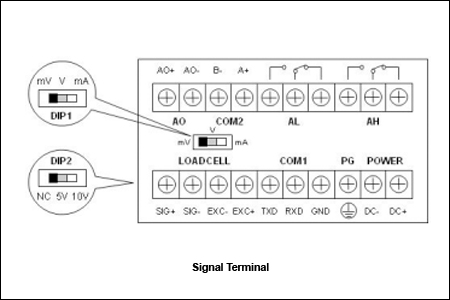

Technical Specifications : Power Supply : DC24V±20%, Max. 5W Loadcell Excitation Voltage/Current : DC5V/120mA. 2 Normally open/closed Relays [DO] : AC250V/DC24V, 1A 1 Analog Signal Outputs [AO] : 0~20mA, 0.05%FS COM1 : RS232 COM2 : RS485 Outline Size [W×H×D] : 107 × 60 × 100 mm. Operating Temperature : -25℃～+45℃	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.03% Static Weighing / Force Measuring Accuracy : 0.2%~0.5% • 8 Loadcells[350Ω] connectable
Main Applications : • Weight/Force Display • Peak Value Detection / Display Holding • Weight/Force Signal AO/Digit Transmission • Setpoint DO Output • Weight/Force Limit DO Alarm Mode • Weight/Force Increment DO Output Mode • Weight/Force Decrement DO Output Mode • Weight/Force Section DO Output Mode

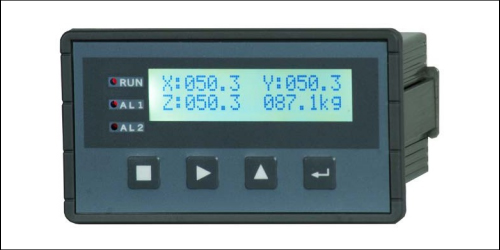

Mini 3-D/3-CH Force Measuring Controller

GS TK94(M3FM)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 2×16 LCD display screen for English/Digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 1280Hz • Optional Special Anti-vibration Digital Filtering Algorithm for measuring, stable display and rapid response • Auto Zero Tracking • Definable COM[Communication Port] • Load Calibration & Data Calibration.
Technical Specifications : Power Supply : DC24V±20%, Max. 5W Loadcell Excitation Voltage/Current : DC5V/120mA. Force Signal Input Range : ±35mV 2 Transistor Switch [DO] : DC24V, 10mA COM1 : Fixed RS485&RS232 [Select by DIP switch] Outline Size [W×H×D] : 107 × 60 × 100 mm Operating Temperature : -10℃～+40℃	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.03% Static Force Measuring Accuracy : 0.2%~0.5% precise force • 8 Loadcells[350Ω] connectable • DO Contact can set as ‘Normally Open’ or ‘Normally Closed’ • Connect Host IPC[Modbus] & Remote Display
Main Applications : • 1-3 Channels Force Measuring System • 3-Channel Real-time Force Values & Resultant Force Display • 3-Channel Peak Values & Resultant Force Peak Value Display • Resultant Force/Peak Upper/Lower Limit DO Alarm • RS232/RS485 Digit Transmission • 3-D Resultant Force Algorithm [F2=X2+Y2+Z2] • Cumulative Sum Resultant Force Algorithm [F=X+Y+Z]
