Bagging Controller

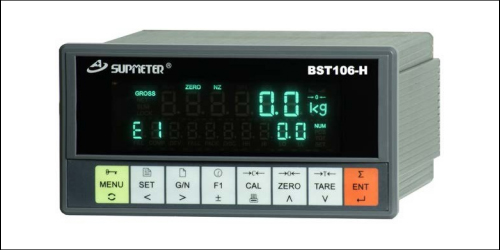

GS TK79(VRP)

	Main Features : • EMC design with high anti-jam for industrial environment • 32-bit ARM CPU with 72MHz clock & high arithmetic speed • 6+10 Green VFD digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 400Hz • Auto Zero Tracking • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count & Target Batch Weight Control • Definable AO/COM[Communication Port] • 3-speed[high/medium/low] feeding control by DOs or AOs • Recipe Number: 10
Technical Specifications : Power Supply : AC85~264V, 50/60Hz, Max. 10W Loadcell Excitation Voltage/Current : DC10V/250mA. 12 Normally Open Transistor Outputs [DO] : DC24V, 500mA 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : RS232 COM2 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet. Outline Size [W×H×D] : 164 × 82 × 188 mm Panel Cut-out Size [W×H] :153 × 77 mm Operating Temperature : -25℃～+45℃ Weighing Signal Input Range : 0~25mV	Panel Cut-out Size [W×H] : 153 × 77 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Packing Accuracy : 0.2%~0.5% • 8 Loadcells[350Ω] connectable • 7 Normally Open Switch Inputs [DI] • Connect Host IPC, Remote Display, Printer&Wireless Module

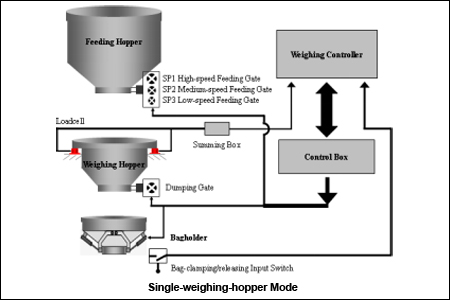

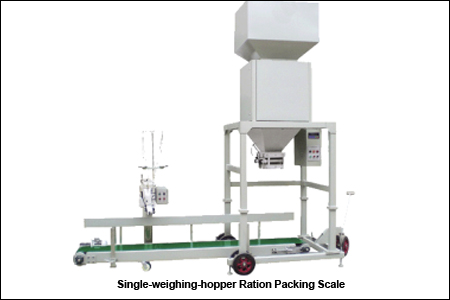

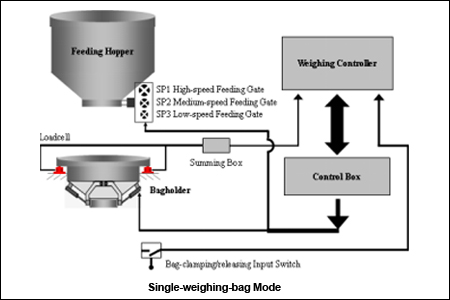

Main Applications : • H16[A]: Single-weighing-hopper/bag Ration Packing Scale • H16[D]: Loss-in-weight Ration Packing Scale

Bagging Controller

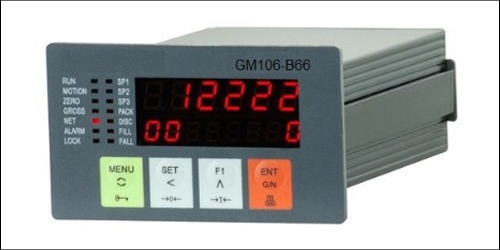

GS TK80(LRP)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 6+8 Red LED digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 400Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count & Target Batch Weight Control • Definable DI/DO/AO/COM[Communication Port] • 3-speed[high/medium/low] feeding control by DOs or AOs • Recipe Number: 1
Technical Specifications : Power Supply : DC24V±20%, Max. 5W Loadcell Excitation Voltage/Current : DC9V/120mA. 8 Normally Open Transistor Outputs [DO] : DC24V, 500mA 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : RS232 COM2 : RS485 Outline Size [W×H×D] : 110 × 62 × 150 mm. weighing, stable Operating Temperature : -25℃～+45℃ Weighing Signal Input Range : 0~22.5mV	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.03% Static Weighing Accuracy : 0.2%~0.5% Packing Accuracy : 0.2%~0.5% • 4 Loadcells[350Ω] connectable • 6 Normally Open Switch Inputs [DI] • Connect Host IPC[Modbus] & Remote Display
Main Applications : • B66[A]: Single-weighing-hopper/bag Ration Packing Scale • B66[D]: Loss-in-weight Ration Packing Scale
