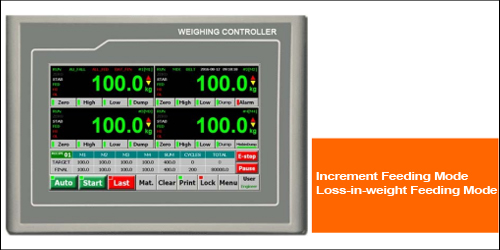

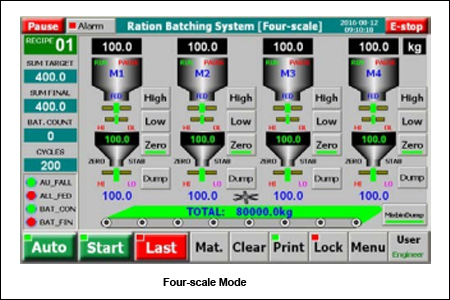

Batching Controller [4-Scale]

GS TJ83(TRB4)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 800Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count Control • Definable DI/DO/AO/COM[Communication Port] • Recipe Number: 100
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC5V/250mA. 18 Normally Open Transistor Outputs [DO] : DC24V, 500mA 4 Analog Signal Outputs [AO] : 0~10V, Max.50mA. COM&COM1 : RS232; COM2: RS485 USB1 : Connect mouse, software download, data backup LAN : Optional Ethernet Outline Size [W×H×D] : •7”:226.5 × 163 × 36 mm •10.2”:274 × 193 × 40 mm Weighing Signal Input Range : 0~12.5mV	Panel Cut-out Size [W×H] : •7”:215 × 152 mm •10.2”:261 × 180 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Filling Accuracy : 0.2%~0.5% • 16 Loadcells[350Ω] connectable • 7 Normally Open Switch Inputs [DI]
Main Applications : • Ration Batching Scale with 4-material • Loss-in-weight Batching Scale with 4-material

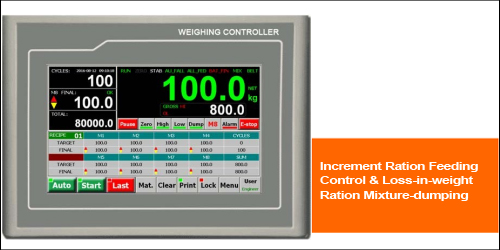

Batching Controller [1-Scale]

GS TK84(TRB1)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 800Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • 2-speed[high/low] feeding control by DOs or AOs • Definable DI/DO/AO/COM[Communication Port] • Recipe Number: 100
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC5V/250mA. 18 Normally Open Transistor Outputs [DO] : DC24V, 500mA 4 Analog Signal Outputs [AO] : 0~10V, Max.50mA. COM&COM1 : RS232; COM2: RS485 USB1 : Connect mouse, software download, data backup LAN : Optional Ethernet Outline Size [W×H×D] : •7”:226.5 × 163 × 36 mm •10.2”:274 × 193 × 40 mm Weighing Signal Input Range : 0~12.5mV	Panel Cut-out Size [W×H] : •7”:215 × 152 mm weighing, •10.2”:261 × 180 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Batching Accuracy : 0.2%~0.5% • 16 Loadcells[350Ω] connectable • 9 Normally Open Switch Inputs [DI]

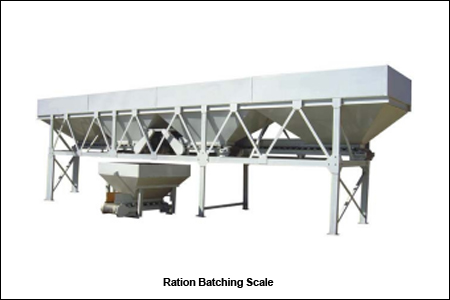

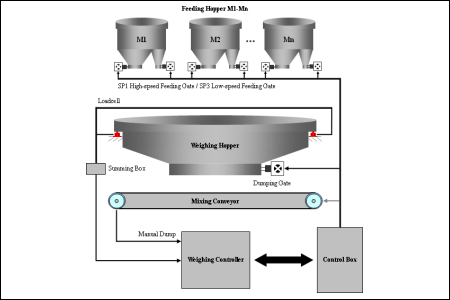

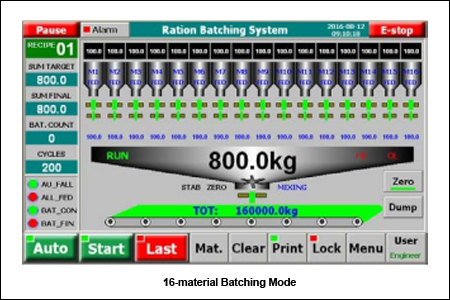

Main Applications : • Ration Batching Scale with 1-16 materials [Single-scale] • Loss-in-weight Ration Mixture-dumping Control.

Batching Controller

GS TK85(VRB)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 6+10 Green VFD digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 400Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count Control • Definable AO/COM[Communication Port] • 2-speed[high/low] feeding control by DOs or AOs • Recipe Number: 10
Technical Specifications : Power Supply : AC85~264V, 50/60Hz, Max. 10W Loadcell Excitation Voltage/Current : DC10V/250mA 8 Normally Open Transistor Outputs [DO] : DC24V, 500mA 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : RS232 COM2 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet Outline Size [W×H×D] : 164 × 82 × 188 mm Operating Temperature : -25℃～+45℃	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Batching Accuracy : 0.2%~0.5% • 8 Loadcells[350Ω] connectable • 7 Normally Open Switch Inputs [DI] • Connect Host IPC, Remote Display, Printer&Wireless Module
Main Applications : • H18[F]: 5-Material Ration Batching Scale • H18[E]: 8-Material Ration Batching Scale

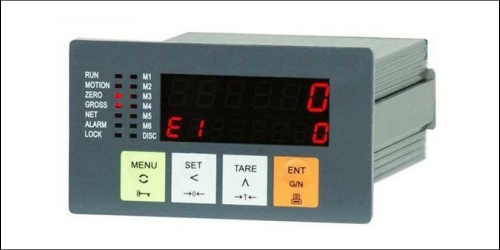

Batching Controller [4-Scale]

GS TJ83(TRB4)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 6+8 Red LED digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 400Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count & Target Batch Weight Control • Definable AO/COM[Communication Port] • 2-speed[high/low] feeding control by DOs or AOs • Recipe Number: 1
Technical Specifications : Power Supply : DC24V±20%, Max. 5W Loadcell Excitation Voltage/Current : DC9V/120mA. 8 Normally Open Transistor Outputs [DO] : DC24V, 500mA 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : RS232 COM2 : RS485 Outline Size [W×H×D] : 110 × 62 × 150 mm. weighing, stable Operating Temperature : -25℃～+45℃ Weighing Signal Input Range : 0~22.5mV	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.03% Static Weighing Accuracy : 0.2%~0.5% Batching Accuracy : 0.2%~0.5% • 4 Loadcells[350Ω] connectable • 6 Normally Open Switch Inputs [DI] • Connect Host IPC[Modbus] & Remote Display
Main Applications : • 4-Material Ration Batching Scale
