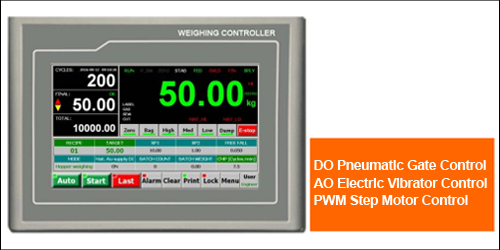

Bagging Controller (Touch) [1-Scale]

GS TK76(TRP1)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 800Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count & Target Batch Weight Control • Definable DI/DO/AO/COM[Communication Port] • 3-speed[high/medium/low] feeding control by DOs or AOs • Recipe Number: 100
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC5V/250mA. 18 Normally Open Transistor Outputs [DO] : DC24V, 500mA 2 Analog Signal Outputs [AO] : 0~10V, Max.50mA. COM&COM1 : RS232; COM2: RS485 USB1 : Connect mouse, software download, data backup LAN : Optional Ethernet Outline Size [W×H×D] : •7”:226.5 × 163 × 36 mm •10.2”:274 × 193 × 40 mm Weighing Signal Input Range : 0~12.5mV	Panel Cut-out Size [W×H] : •7”:215 × 152 mm •10.2”:261 × 180 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Packing Accuracy : 0.2%~0.5% • 16 Loadcells[350Ω] connectable • 9 Normally Open Switch Inputs [DI]

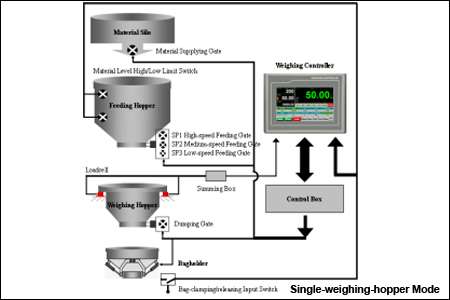

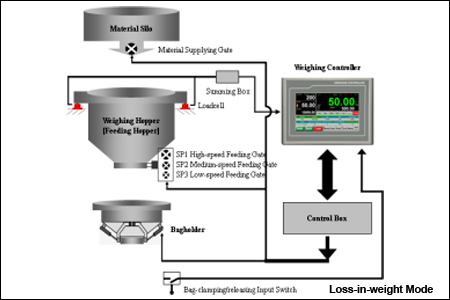

Main Applications : • Single-weighing-hopper Ration Packing Scale • Single-weighing-bag Ration Packing Scale • Loss-in-weight Ration Packing Scale

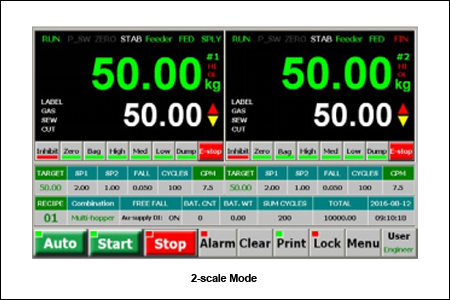

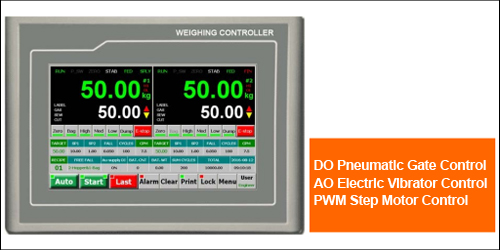

Bagging Controller (Touch) [2-Scale]

GS TK77(TRP2)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 800Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count & Target Batch Weight Control • Definable DI/DO/AO/COM[Communication Port] • 3-speed[high/medium/low] feeding control by DOs or AOs • Recipe Number: 100
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC5V/250mA. 18 Normally Open Transistor Outputs [DO] : DC24V, 500mA 2 Analog Signal Outputs [AO] : 0~10V, Max.50mA. COM&COM1 : RS232; COM2: RS485 USB1 : Connect mouse, software download, data backup LAN : Optional Ethernet Outline Size [W×H×D] : •7”:226.5 × 163 × 36 mm •10.2”:274 × 193 × 40 mm Weighing Signal Input Range : 0~12.5mV	Panel Cut-out Size [W×H] : •7”:215 × 152 mm •10.2”:261 × 180 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Packing Accuracy : 0.2%~0.5% • 16 Loadcells[350Ω] connectable • 9 Normally Open Switch Inputs [DI]

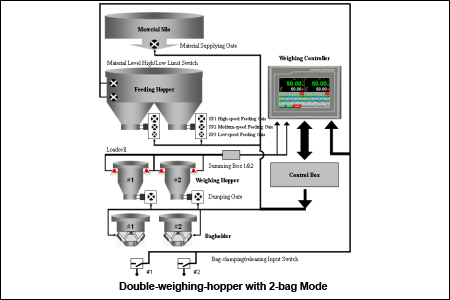

Main Applications : • Ration Packing Scale with 2-weighing-hopper&1/2-bag • Ration Packing Scale with 2-weighing-bag

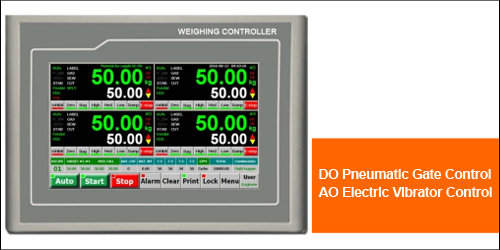

Bagging Controller (Touch) [4-Scale]

GS TK78(TRP4)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 800Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Target Batch Count & Target Batch Weight Control • Definable DI/DO/AO/COM[Communication Port] • 3-speed[high/medium/low] feeding control by DOs or AOs • Recipe Number: 100
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC5V/250mA. 18 Normally Open Transistor Outputs [DO] : DC24V, 500mA 2 Analog Signal Outputs [AO] : 0~10V, Max.50mA. COM&COM1 : RS232; COM2: RS485 USB1 : Connect mouse, software download, data backup LAN : Optional Ethernet Outline Size [W×H×D] : •7”:226.5 × 163 × 36 mm •10.2”:274 × 193 × 40 mm Weighing Signal Input Range : 0~12.5mV	Panel Cut-out Size [W×H] : •7”:215 × 152 mm •10.2”:261 × 180 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% Packing Accuracy : 0.2%~0.5% • 16 Loadcells[350Ω] connectable • 7 Normally Open Switch Inputs [DI]

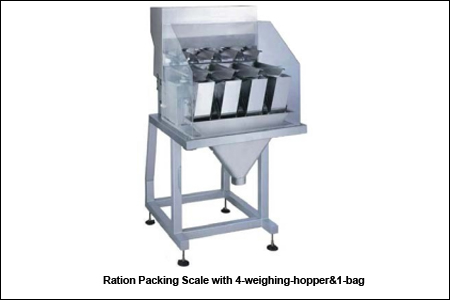

Main Applications : • Ration Packing Scale with 4-weighing-hopper&1/4-bag • Combination[Multi-hopper Packing] Mode • Combination[Single-hopper Packing] Mode • Respective[Single-hopper Packing] Mode
