Weinghing Controller

GS TK87(VWT)

	Main Features : • EMC design with high anti-jam for industrial environment • 32-bit ARM CPU with 72MHz clock & high arithmetic speed • 6+10 Green VFD digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 400Hz • Auto Zero Tracking • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Definable AO/COM[Communication Port] • The Weighing Record and Totalizing Report can be printed • Load Calibration, Data Calibration & Segmenting Correction
Technical Specifications : Power Supply : AC85~264V, 50/60Hz, Max. 10W Loadcell Excitation Voltage/Current : DC10V/250mA. 5 Normally Open Transistor Outputs [DO] : AC250V/DC24V, 1A 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : Fixed RS232&RS485. Free to use one of them COM2 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet. Outline Size [W×H×D] : 164 × 82 × 188 mm Operating Temperature : -25℃～+45℃ Weighing Signal Input Range : 0~25mV	Panel Cut-out Size [W×H] : 153 × 77 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.02% Static Weighing Accuracy : 0.2%~0.5% • 8 Loadcells[350Ω] connectable • 5 Normally Open Switch Inputs [DI] • Connect Host IPC, Remote Display, Printer&Wireless Module

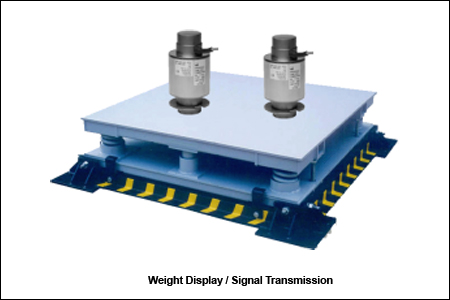

Main Applications : • Weight Display, Setpoint DO Output, Manual/Auto Totalizing • Weight Signal AO/Digit Transmission • Weight Limit DO Alarm Mode • Weight Increment DO Output Mode • Weight Decrement DO Output Mode • Weight Section DO Output Mode

Weinghing Controller

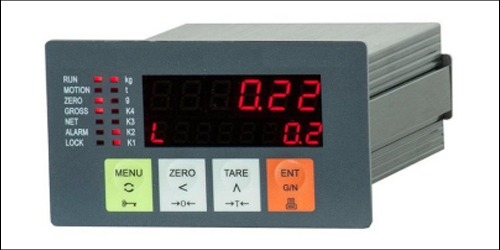

GS TK88(LWT)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • 32-bit ARM CPU with 48MHz clock & high arithmetic speed • 6+8 Red LED digital tubes for English&digit display • 24-bit ∑-△ADC with internal resolution 1/1,000,000 • High sampling frequency 400Hz • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response • Auto Zero Tracking • Load Calibration, Data Calibration & Segmenting Correction • Definable AO/COM[Communication Port]
Technical Specifications : Power Supply : DC24V±20%, Max. 5W. Loadcell Excitation Voltage/Current : DC9V/120mA 5 Normally Open Transistor Outputs [DO] : AC250V/DC24V, 1A 1 Analog Signal Outputs [AO] : 4~20mA, 0.05%FS. COM1 : RS232 COM2 : RS485 Outline Size [W×H×D] : 110 × 62 × 150 mm Operating Temperature : -25℃～+45℃ Weighing Signal Input Range : 0~25mV	Panel Cut-out Size [W×H] : 94 × 47 mm Protection Level of Front Panel : IP65 Accuracy Grade : III Verification Accuracy : 0.03% Static Weighing Accuracy : 0.2%~0.5% • 4 Loadcells[350Ω] connectable • 6 Normally Open Switch Inputs [DI] • Connect Host IPC[Modbus] & Remote Display
Main Applications : • Weight Display, Setpoint DO Output, Manual/Auto Totalizing • Weight Signal AO/Digit Transmission • Weight Limit DO Alarm Mode • Weight Increment DO Output Mode • Weight Decrement DO Output Mode • Weight Section DO Output Mode
