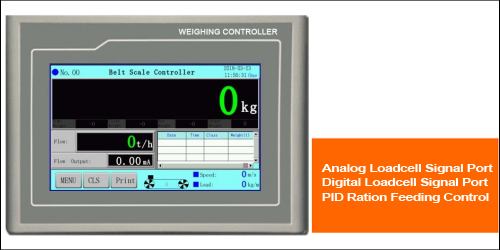

TFT-Touch Belt/Loss in weight Weighfeeder Controller

GS TK95(TFTB/L)

	Main Features : • EMC design with high anti-jam for industrial environment • DC24V power input with reverse polarity protection • Cortex-A8 CPU with 600MHz Clock, 128M Flash • 7” [800×480] or 10.2” [1024×600] TFT touch panel • 24-bit ∑-△ADC with internal resolution 1/130,000 • High sampling frequency 400Hz • Zero Calibration & Auto Zero Tracking • Span Calibration & Segmenting Correction • Definable DI/DO/AO/COM[Communication Port] • Quick and steady PID ration feeding control
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC10V/250mA. 12 Normally Open Transistor Outputs [DO] : DC24V, 500mA Weighing Signal Input Range : 0~25mV COM1 : RS232 & RS485 Speed Sensor Excitation Voltage/Current : DC12V/100mA Speed Signal Input Range : 0.5~3000Hz Outline Size [W×H×D] : 204 × 150 × 50 mm	Panel Cut-out Size [W×H] : 192 × 138 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : 0.5 Accuracy of Flow Control : 0.5%~1.0% • 8 Loadcells[350Ω] connectable • 9 Normally Open Switch Inputs [DI]

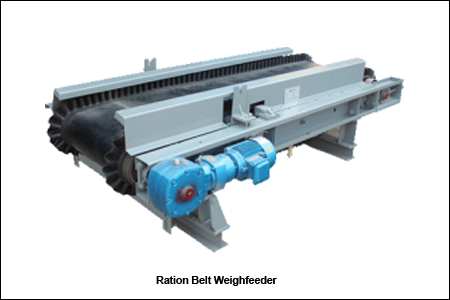

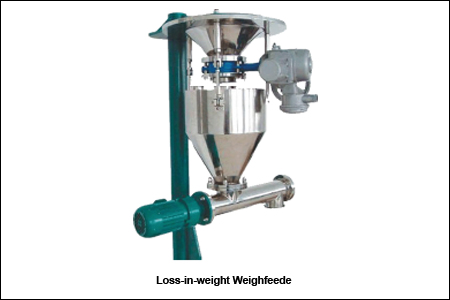

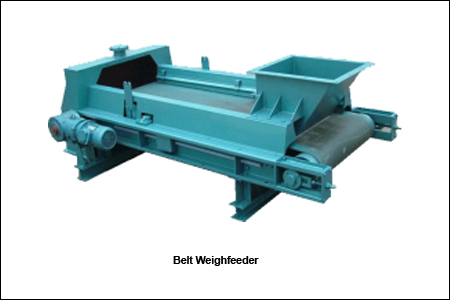

Main Applications : • Belt Weigher with Weight Totalizing • Ration Belt Weighfeeder with Ration Flow Feeding • Loss-in-weight Weighfeeder with Ration Flow Feeding

Belt/Loss-in-weight Weighfeeder Controller

GS TK96(LCDB/L)

	Main Features : • EMC design with high anti-jam for industrial environment • 32-bit ARM CPU with 72MHz clock & high arithmetic speed • 128×64 LCD display screen with 7 background color • The feeder and belt weigher can be controlled by DI&DO • 24-bit ∑-△ADC with internal resolution 1/130,000 • High sampling frequency 400Hz • Zero Calibration & Auto Zero Tracking • Span Calibration & Segmenting Correction • Definable DI/DO/AO/COM[Communication Port] • Quick and steady PID ration feeding control
Technical Specifications : Power Supply : AC220V±15%, 50/60Hz, Max. 15W Loadcell Excitation Voltage/Current : DC10V/250mA. 4 Normally Open Transistor Outputs [DO] : AC250V/DC24V, 1A Weighing Signal Input Range : 0~25mV COM1 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet Speed Sensor Excitation Voltage/Current : DC12V/100mA Speed Signal Input Range : 0.5~3000Hz Outline Size [W×H×D] : 164 × 86 × 193 mm	Panel Cut-out Size [W×H] : 153 × 77 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : 0.5 Accuracy of Flow Control : 0.5%~1.0% • 8 Loadcells[350Ω] connectable • 3 Normally Open Switch Inputs [DI]
Main Applications : • Belt Weigher with Weight Totalizing • Ration Belt Weighfeeder with Ration Flow Feeding • Loss in weight Weighfeeder with Ration Flow Feeding

Belt/Loss-in-weight Weighfeeder Controller

GS TK97(LCDB/L)

	Main Features : • EMC design with high anti-jam for industrial environment • 32-bit ARM CPU with 72MHz clock & high arithmetic speed • 128×64 LCD display screen with 7 background color • The feeder and belt weigher can be controlled by DI&DO • 24-bit ∑-△ADC with internal resolution 1/130,000 • High sampling frequency 400Hz • Zero Calibration & Auto Zero Tracking • Span Calibration & Segmenting Correction • Definable DI/DO/AO/COM[Communication Port] • Quick and steady PID ration feeding control
Technical Specifications : Power Supply : DC24V±20%, Max. 10W Loadcell Excitation Voltage/Current : DC10V/250mA. 4 Normally Open Transistor Outputs [DO] : AC250V/DC24V, 1A Weighing Signal Input Range : 0~25mV COM1 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet Speed Sensor Excitation Voltage/Current : DC12V/100mA Speed Signal Input Range : 0.5~3000Hz Outline Size [W×H×D] : 288 × 95 × 189 mm	Panel Cut-out Size [W×H] : 281 × 88 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : 0.5 Accuracy of Flow Control : 0.5%~1.0% • 8 Loadcells[350Ω] connectable • 3 Normally Open Switch Inputs [DI]
Main Applications : • Belt Weigher with Weight Totalizing • Ration Belt Weighfeeder with Ration Flow Feeding • Loss in weight Weighfeeder with Ration Flow Feeding

Belt/Loss in weight Weighfeeder Controller

GM TK98(LCDB/L)

	Main Features : • EMC design with high anti-jam for industrial environment • 32-bit ARM CPU with 72MHz clock & high arithmetic speed • 128×64 LCD display screen with 7 background color • The feeder and belt weigher can be controlled by DI&DO • 24-bit ∑-△ADC with internal resolution 1/130,000 • High sampling frequency 400Hz • Zero Calibration & Auto Zero Tracking • Span Calibration & Segmenting Correction • Definable DI/DO/AO/COM[Communication Port] • Quick and steady PID ration feeding control
Technical Specifications : Power Supply : AC220V±15%, 50/60Hz, Max. 15W Loadcell Excitation Voltage/Current : DC10V/250mA. 4 Normally Open Transistor Outputs [DO] : AC250V/DC24V, 1A Weighing Signal Input Range : 0~25mV COM1 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet Speed Sensor Excitation Voltage/Current : DC12V/100mA Speed Signal Input Range : 0.5~3000Hz Outline Size [W×H×D] : 170 × 100 × 193 mm	Panel Cut-out Size [W×H] : 153 × 77 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : 0.5 Accuracy of Flow Control : 0.5%~1.0% • 8 Loadcells[350Ω] connectable • 3 Normally Open Switch Inputs [DI]
Main Applications : • Belt Weigher with Weight Totalizing • Ration Belt Weighfeeder with Ration Flow Feeding • Loss in weight Weighfeeder with Ration Flow Feeding

Belt/Loss in weight Weighfeeder Controller

GS TK99(LEDBW)

	Main Features : • EMC design with high anti-jam for industrial environment • 32-bit ARM CPU with 72MHz clock & high arithmetic speed • 8+4+4 Red LED digital tubes for English&digit display • The feeder and belt weigher can be controlled by DI&DO • 24-bit ∑-△ADC with internal resolution 1/130,000 • High sampling frequency 400Hz • Zero Calibration & Auto Zero Tracking • Span Calibration & Segmenting Correction • Definable DI/DO/AO/COM[Communication Port] • Quick and steady PID ration feeding control
Technical Specifications : Power Supply : AC220V±15%, 50/60Hz, Max. 15W Loadcell Excitation Voltage/Current : DC10V/250mA. 4 Normally Open Transistor Outputs [DO] : AC250V/DC24V, 1A Weighing Signal Input Range : 0~25mV COM1 : Optional RS232/RS485/RS422/Profibus-DP/Ethernet Speed Sensor Excitation Voltage/Current : DC12V/100mA Speed Signal Input Range : 0.5~3000Hz Outline Size [W×H×D] : 164 × 82 × 188 mm	Panel Cut-out Size [W×H] : 153 × 77 mm Operating Temperature : -25℃～+45℃ Protection Level of Front Panel : IP65 Accuracy Grade : 0.5 Accuracy of Flow Control : 0.5%~1.0% • 8 Loadcells[350Ω] connectable • 3 Normally Open Switch Inputs [DI]
Main Applications : • Belt Weigher with Weight Totalizing • Ration Belt Weighfeeder with Ration Flow Feeding
